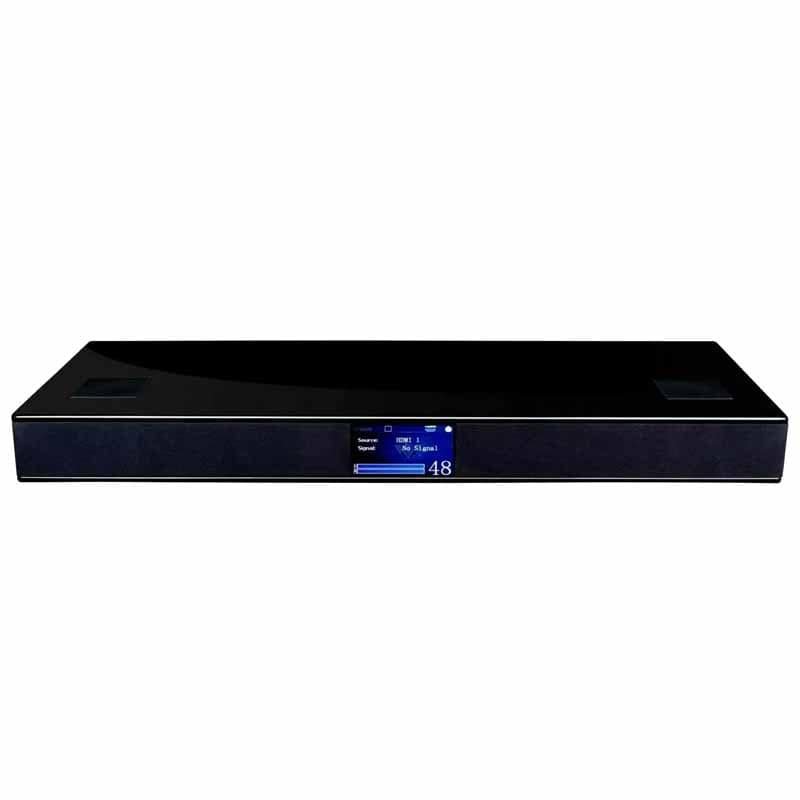

AT-100 Tonewinner 3D 4K Atmos SoundBase 5.1.2 Channels

Product Overview

The ToneWinner AT-100 is a 5.1.2-channel Dolby Atmos SoundBase home theater system designed to deliver immersive surround sound from a single integrated enclosure. It features 12 built-in speaker drivers, three dedicated DSP processors, and a Class D digital amplifier to reproduce detailed dialogue, overhead effects, and deep bass. Its SoundBase design allows a TV to be placed directly on top, making it a space-saving solution for home entertainment systems.

Specifications

Features	Details
Brand	ToneWinner
Model	AT-100
Product Type	5.1.2 Channel Dolby Atmos SoundBase
Speaker Output	N/A
Output Power	20 W + 80 W
Channels	5.1.2
Frequency Response	40 Hz – 20 kHz (-10 dB)
Subwoofer	Dual 5-inch Woofers
Dimensions	1200 × 380 × 110 mm
Weight	18 kg
Surround Technology	Dolby Atmos
DSP Processors	2 × ADI SHARC DSP (AD21487 & AD21489) + 1 × Cirrus Logic CS48560 DSP
Amplifier Type	Class D Digital Amplifier
Speaker Drivers	12 Built-in Drivers
Driver Configuration	2 × 3/4-inch Dome Tweeters, 2 × 5-inch Woofers, 8 × 3-inch Drivers
Front Channels	2 × 3-inch Full-Range, 2 × 3-inch Mid-Bass, 2 × 3/4-inch Dome Tweeters
Height Channels	2 × 3-inch Full-Range Speakers
Low Frequency Extension	Down to 40 Hz
Audio Modes	Pure, Music, Movie, News, Custom
Cabinet Finish	High-Temperature Black Baking Paint
Design	Integrated SoundBase
Power Consumption	≤350 W
OEM Support	OEM/ODM
